Key Features
- 3300W High-Power Motor: Optimized for drilling Ø102–Ø402 mm in demanding materials

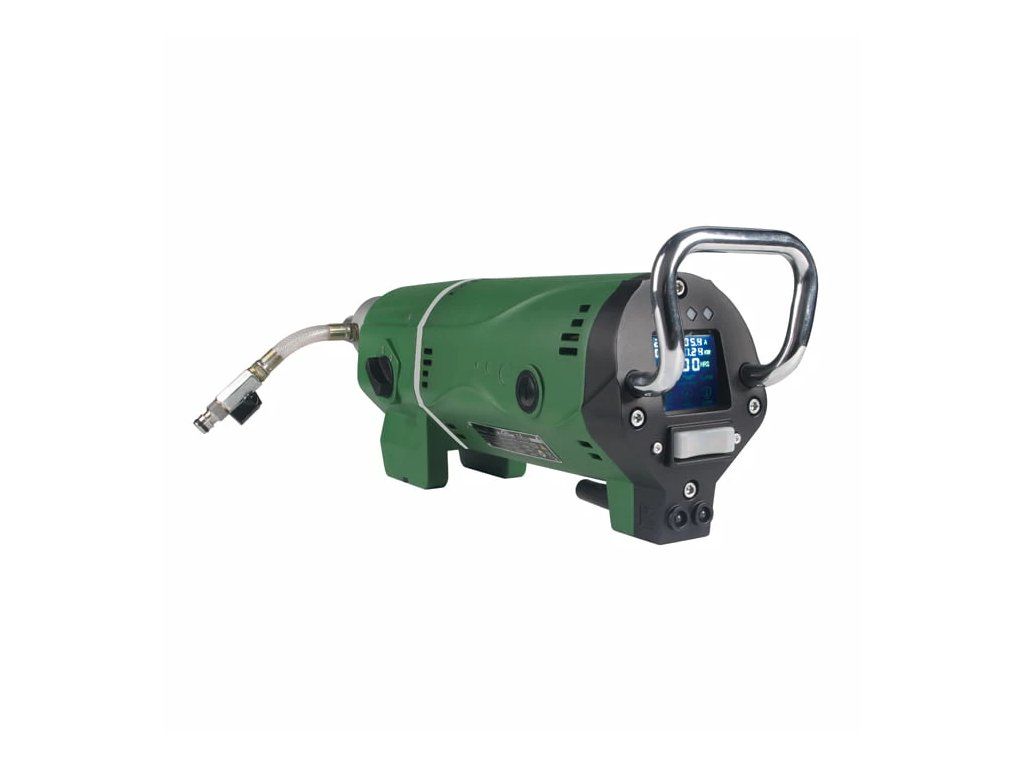

- 3-Speed Control with LCD Display: Choose 350 / 700 / 1100 rpm and monitor all key operating data live
- Oil Bath Gearbox with Pump: Ensures smooth torque delivery and reliable performance
- Wet Compatibility: Ideal for water-cooled concrete drilling

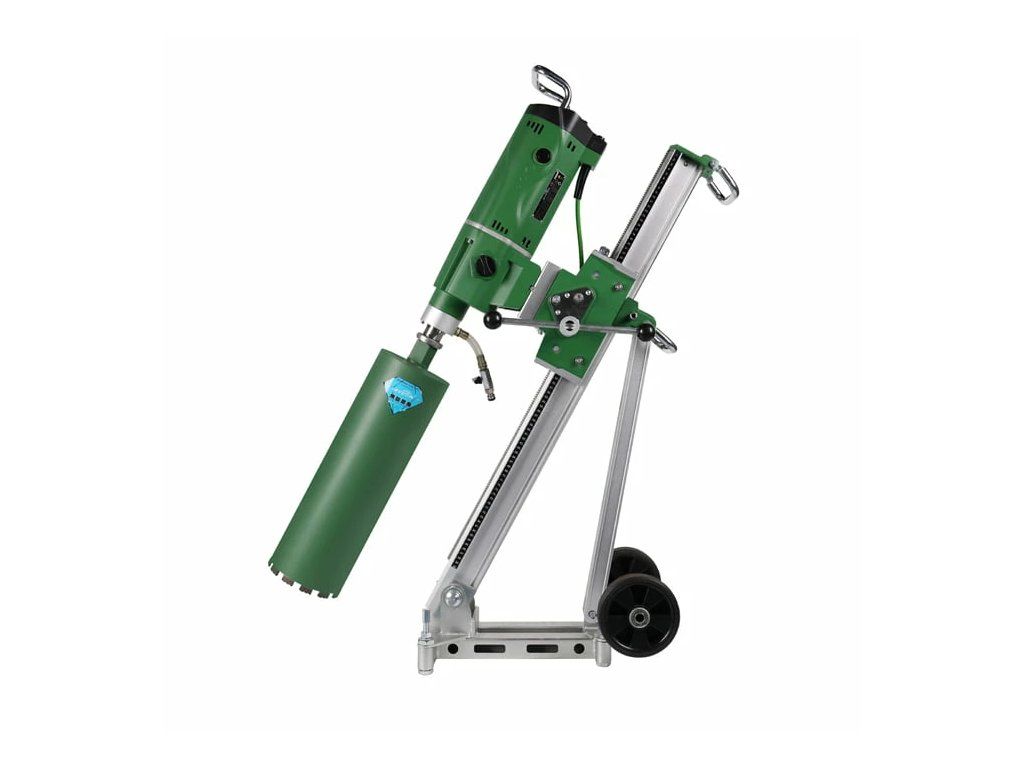

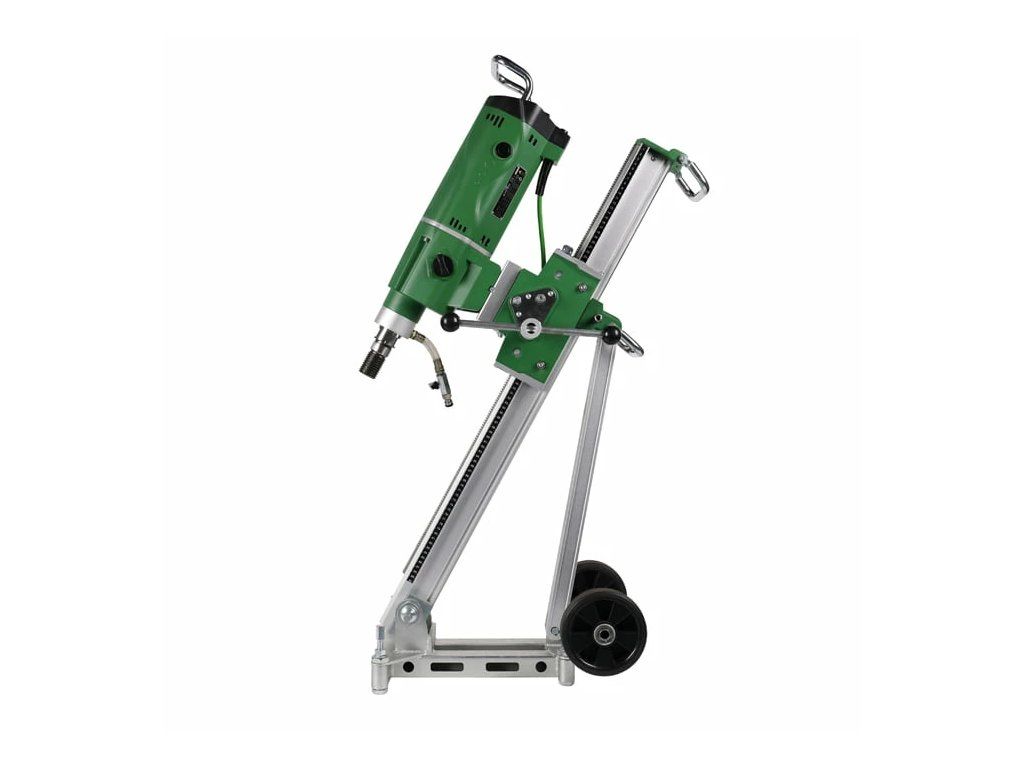

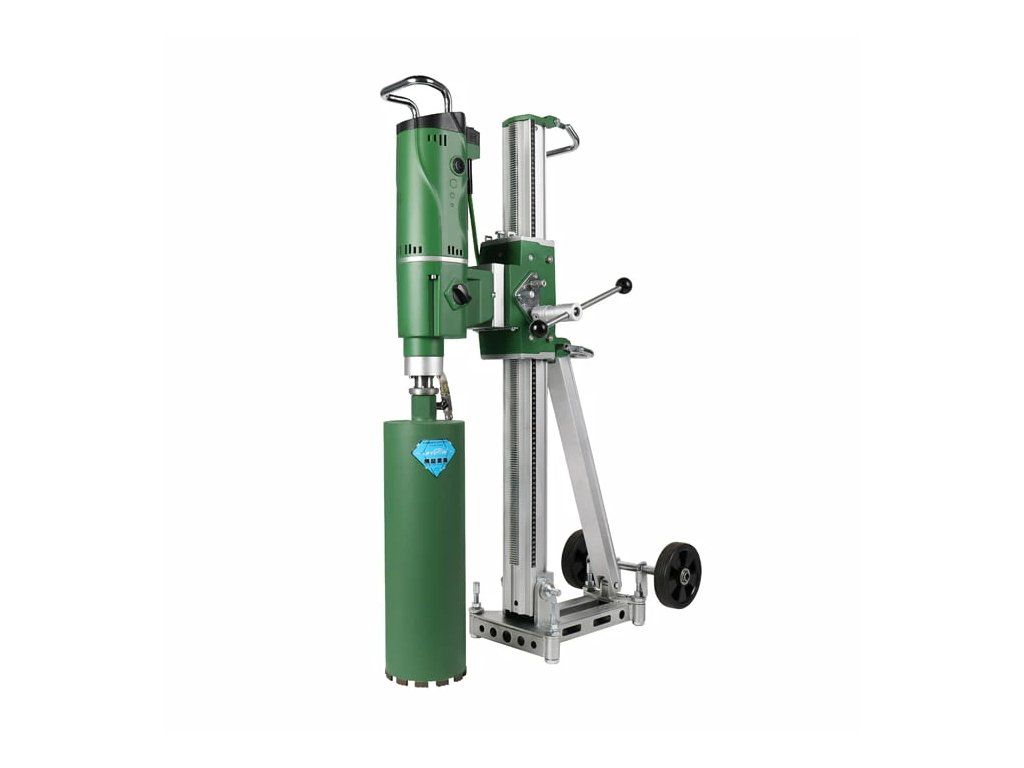

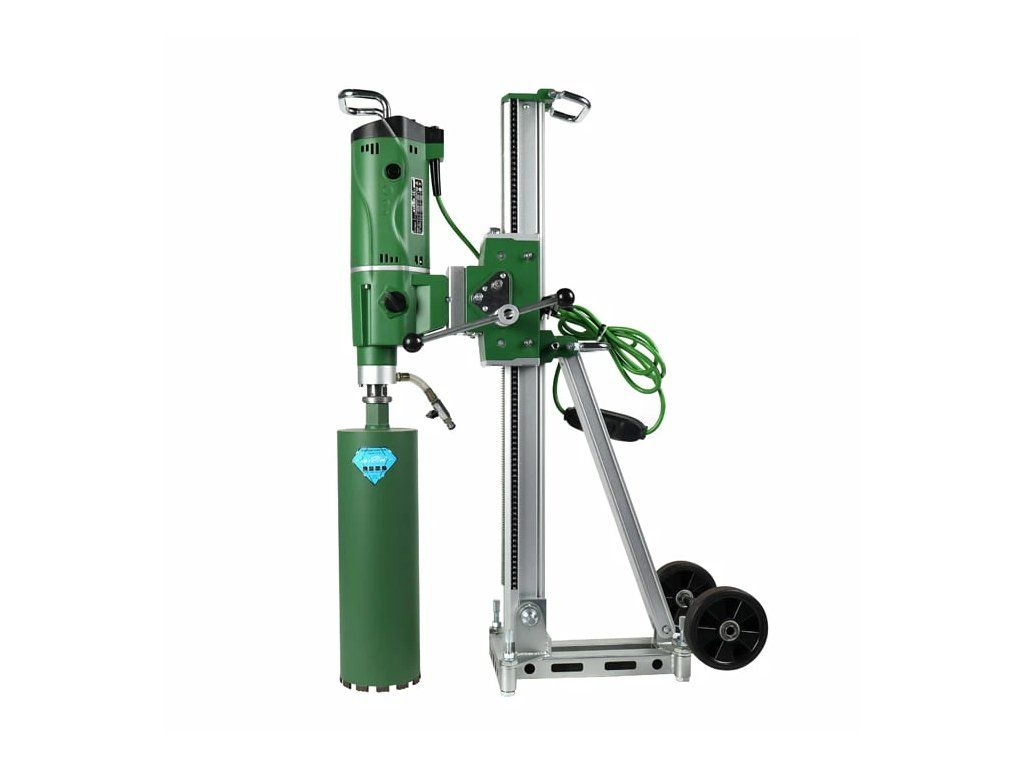

- DSP-352 Drill Stand Included: Adjustable up to 45° tilt for precise angle drilling and total stability
- PRCD Safety Plug: Integrated current leakage protection for operator safety
- Magnesium Alloy Housing: AZ91D-grade body provides lightweight durability in rugged conditions
Technical Specifications
- Power Output: 3300 W
- Voltage: 230 V
- Current / Frequency: 16 A / 50 Hz
- Weight: 13.5 kg (motor only)
- Max Drilling Diameter: Ø402 mm
- Drilling Diameter (Gear 1 / 2 / 3): Ø402 mm / Ø202 mm / Ø102 mm
- No-Load Speeds: 350 / 700 / 1100 rpm
- Connection Type: 1¼″ UNC
- Drill Stand: DSP-352 (included)
- Package Dimensions: 635 × 460 × 215 mm
What’s Included

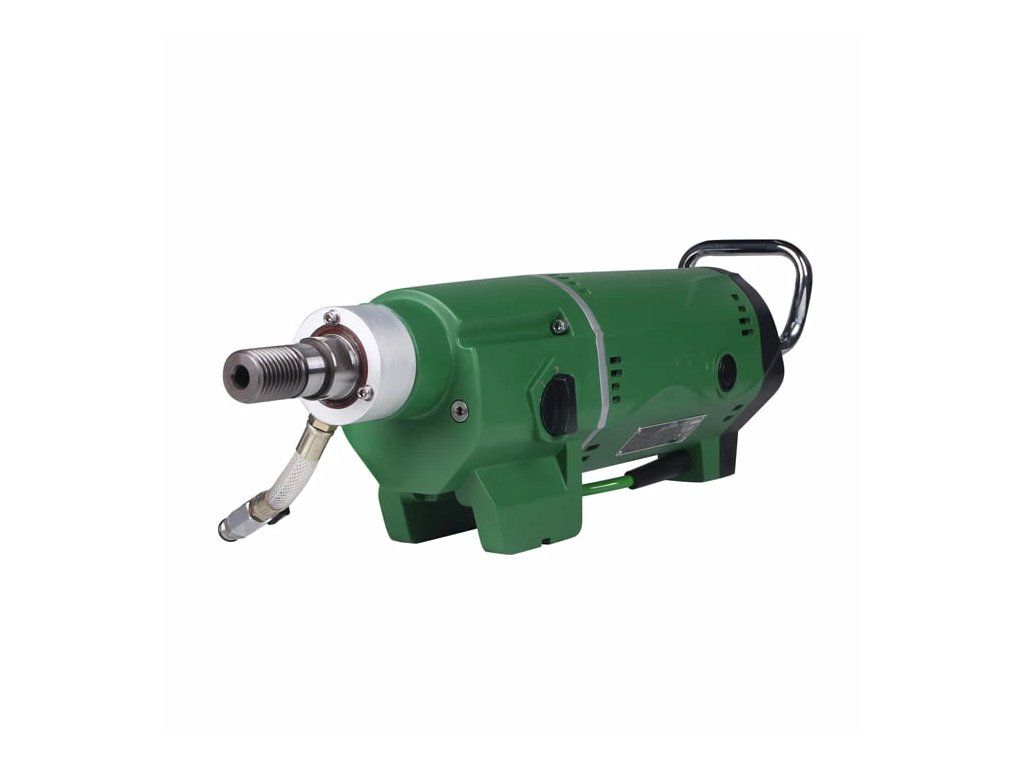

- BYCON DMP-352 Diamond Core Drill Motor (3300 W)
- DSP-352 Adjustable Drill Stand
- Side Handle
- 2 × Carbon Brushes
- 2 × Wrenches
- Quick-Connect Vacuum Hose Adapter
- Quick-Connect Water Hose Adapter
- Quick Release System
- Safety Glasses & Ear Protection
- User Manuals
📌 Drill bits not included. Compatible with all BYCON standard core bits.
